Special Alloy Fasteners & Raw Materials
- Bolts, studs, nuts and screws — plus alloy bar, plate, wire and strip.
- Nickel alloys, duplex and special stainless steels, titanium and zirconium.
- Standard products and custom parts made to your drawings.
- Every delivery: MTC / EN 10204 3.1, heat-number traceability and mechanical testing. PMI agreed separately.
BUYING ROUTES
Find Fasteners by Product, Material or Drawing
Start with a product, material or drawing. Each route leads to the same technical review.
Product forms
Materials
Explore Our Fasteners
Browse standard forms and drawing-based parts in special alloys.
FIND BY MATERIAL
Browse Fastener Materials
Start with the grade on your drawing. Supply is reviewed for the exact product form, condition and standard you request.
Not Sure Which Alloy to Specify?Tell us the application, operating conditions and any required specification.Get a Quote
QUALITY, DEFINED TOGETHER

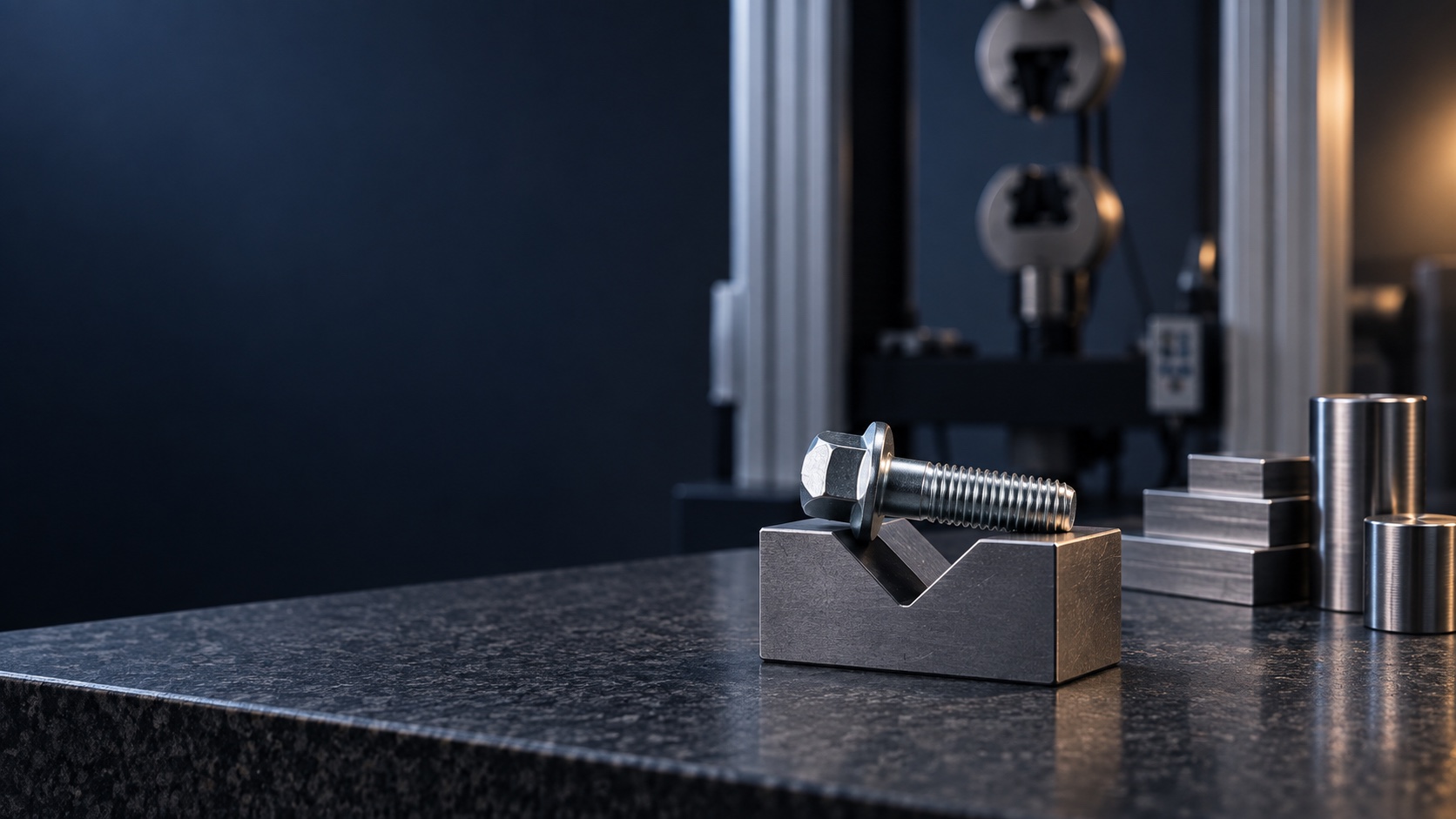

Material Documents and Inspection

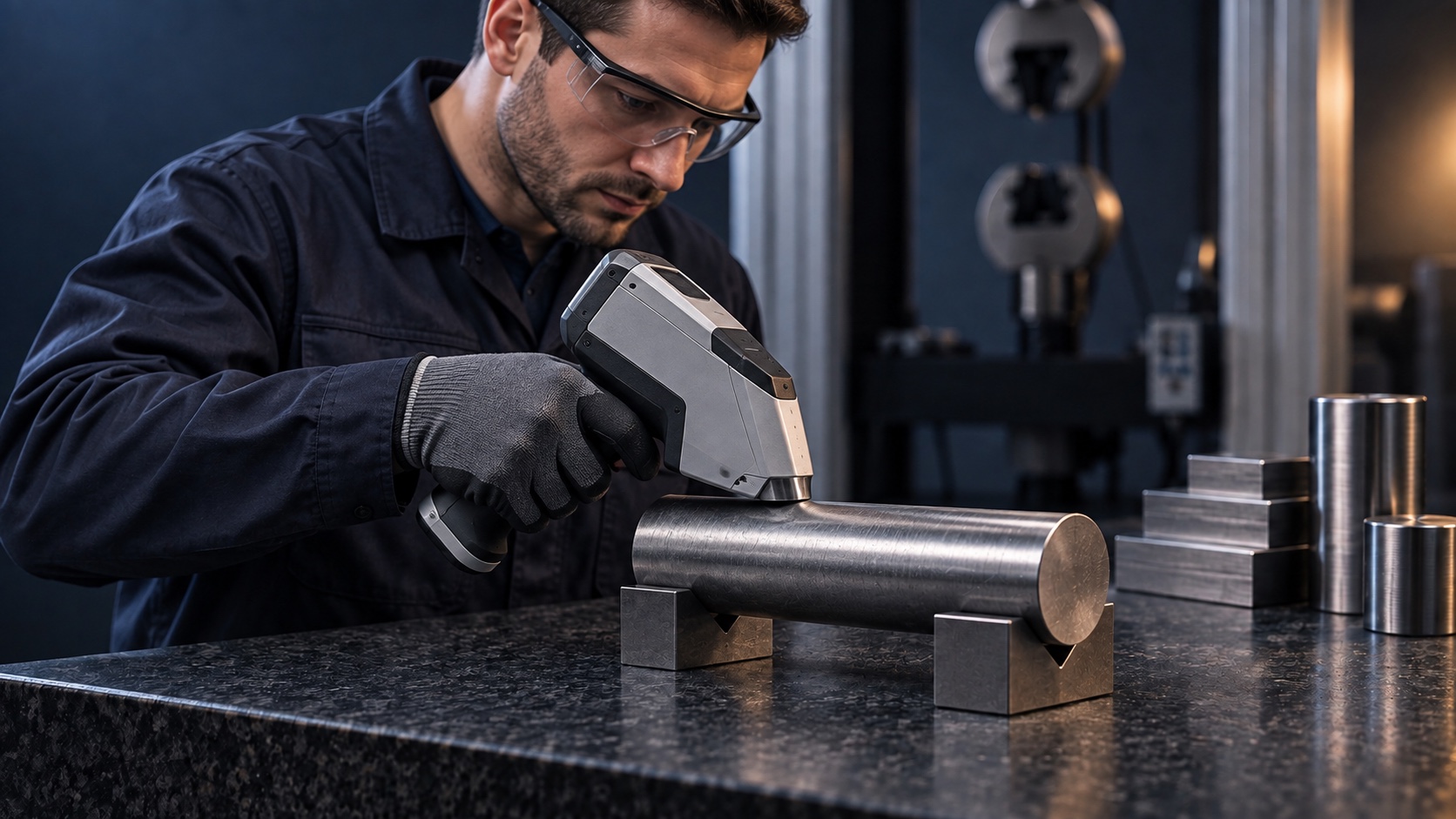

Material documentation. Dimensional reports. PMI. Define the evidence your order needs before production.
Inspection methods, characteristics, sampling and documents are agreed per order. Destructive testing uses an agreed sampling plan.
Quality & DocumentationYour drawing. In 3D.
Receive an initial 3D model within 1 business day.*
What to send
- Drawing & revision
- Material grade
- Quantity
- Required inspection
*Within 1 business day after we receive a readable drawing by email. The initial model is for visual communication and may require correction; the approved drawing and purchase documents control.
DIMENSION & CAD GUIDES
View All Product GuidesKey Fastener Dimensions.
Review what to identify in your enquiry. The 3D guide and illustrations support reading; the approved drawing, agreed standard and purchase documents control.
Stud Bolt & Threaded Rod Dimensions
- Thread Designation
- Pitch / TPI
- Diameter
- Threaded Length
- Overall Length
Socket Screw Dimensions
- Head Diameter
- Head Height
- Drive Size
- Thread
- Overall Length
Hex Nut Dimensions
- Thread Designation
- Width across Flats
- Nut Height
Washer Dimensions
- Inside Diameter
- Outside Diameter
- Thickness
Fastener Materials, Standards and Inspection
All guidesMaterial selection
Fasteners in seawater
Ready to Share Your Requirement?
Send a drawing, BOM or a brief description to get started.
Common Questions
What Should We Send for a Quotation?
Send your drawing, BOM or a short description. Identify the product, material or UNS, dimensions or thread, quantity and any applicable standards. Add inspection, document and delivery requirements when they are already defined.

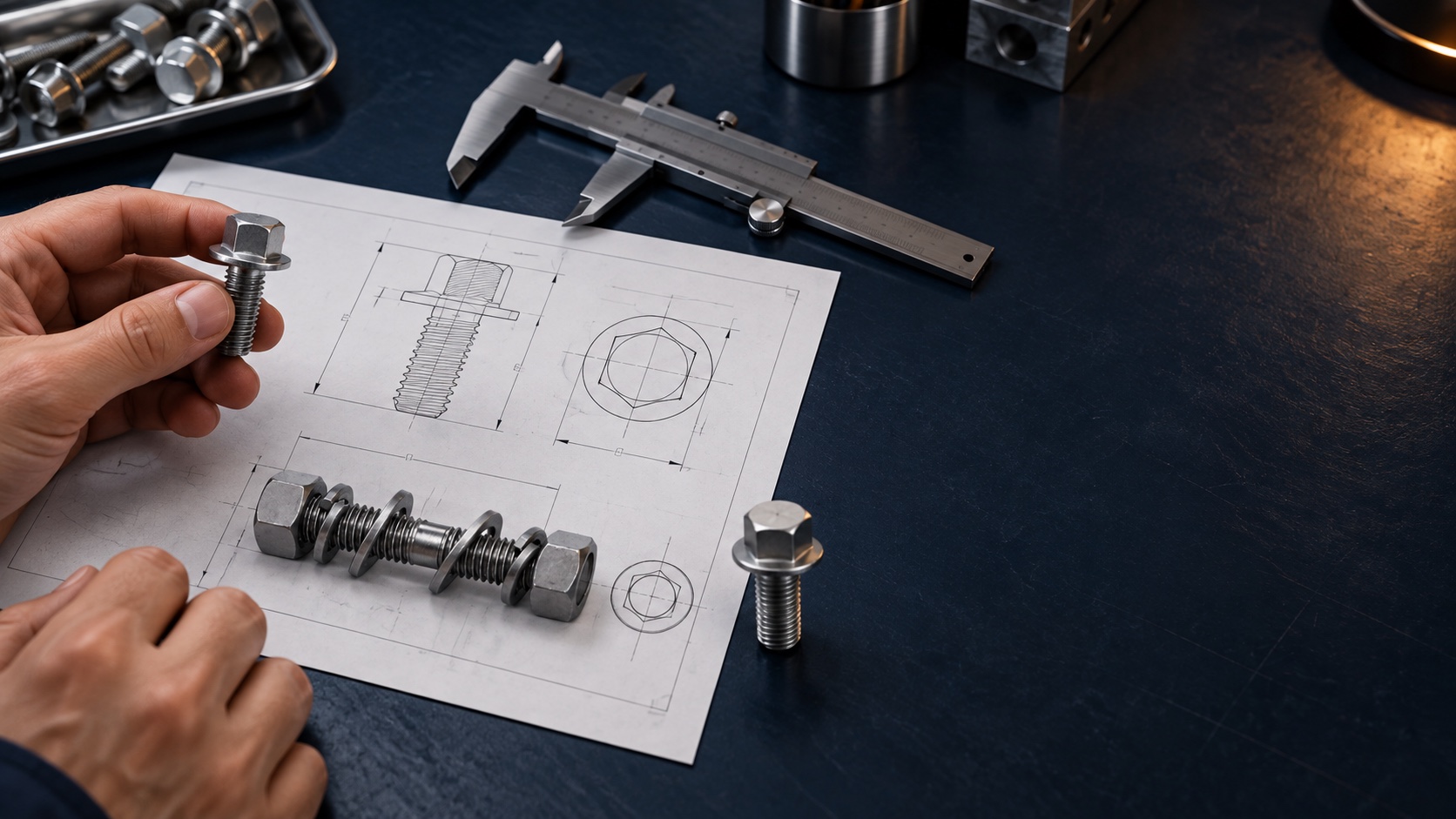

Can You Review a Drawing-Based Fastener?
Yes. Send the latest drawing revision with the alloy, quantity and applicable requirements. We review the requested geometry, material condition, manufacturing route and inspection scope before confirming what can be quoted.
What if Our Drawing Is Incomplete?
Share the information you have, such as the part type, dimensions, alloy, quantity, photographs or an existing specification. We will identify the points that still need agreement. Photographs and illustrative models do not establish dimensions, tolerances, material or performance requirements.
How Should Standards Be Specified?
List the dimensional standard, material specification, finished-product requirements and inspection or documentation requirements separately. Include the applicable revision when it is controlled by your project.
What Is Included with Every Delivery?
Every BYBOLT delivery includes an MTC / EN 10204 3.1 certificate, heat-number traceability and mechanical testing. Threaded products include sampled GO / NO-GO gauging. Test methods and acceptance criteria follow the agreed specification; PMI, third-party inspection and additional records are agreed separately.
Do You Manufacture Custom Fasteners?
Our factory supports custom alloy fastener manufacturing. Product, material, manufacturing route and inspection/documentation requirements are agreed for each order. If your purchasing process requires a facility assessment, include that requirement for review.
